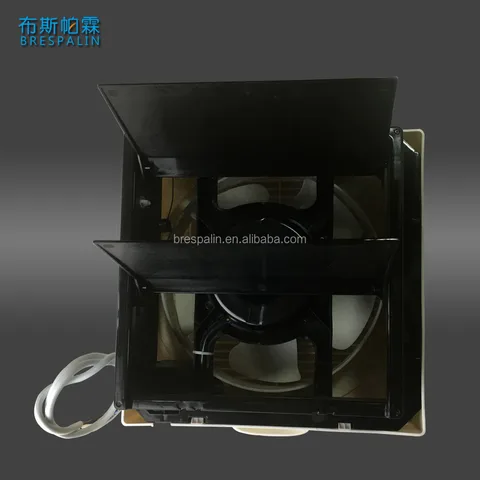

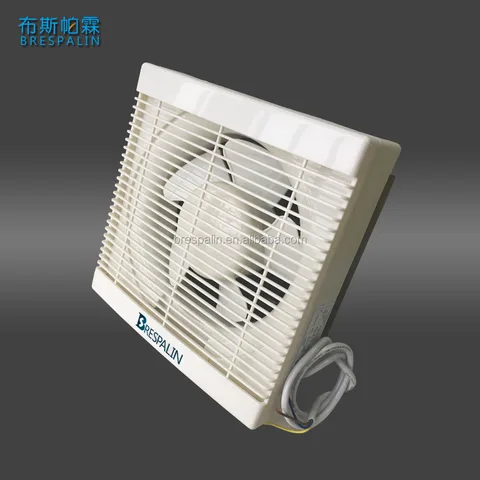

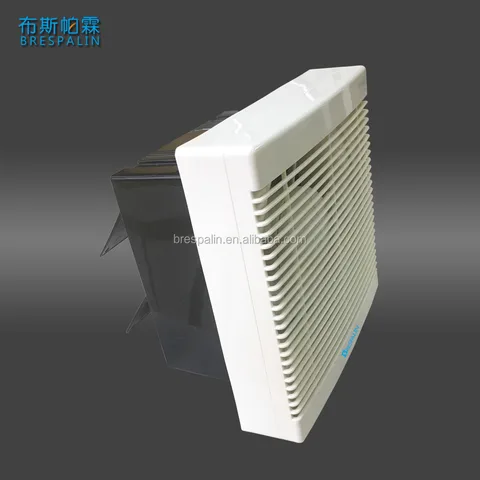

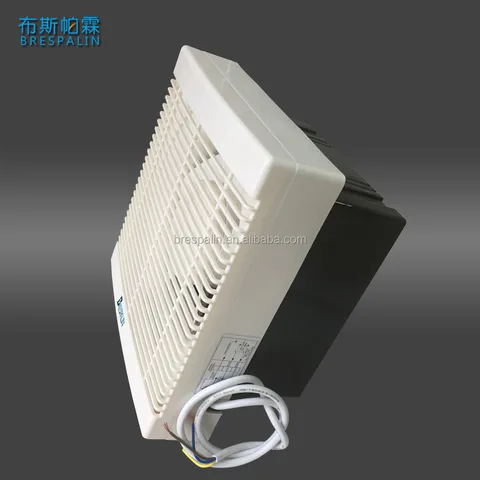

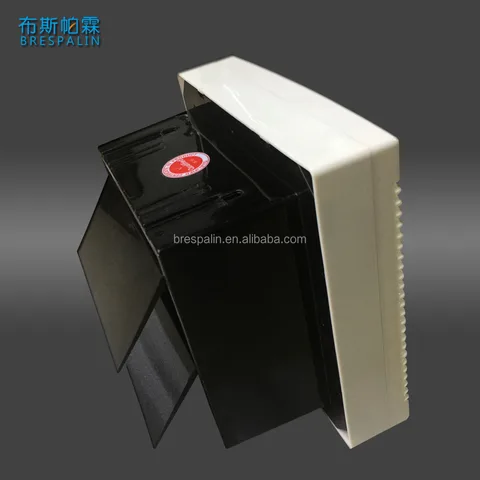

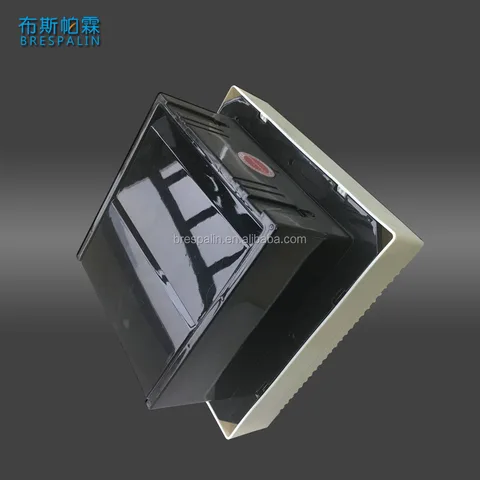

6 8 10 12 Inch Exhaust Fan for Bathroom and Smoking Room with Net
| Name: | 6 8 10 12 Inch Exhaust Fan for Bathroom and Smoking Room with Net |
|---|---|
| SKU: | APB25-SH1 |
| FOB Price: | US $8.00 / Piece |
| Min. order: | 500 Piece |
| Place of Origin: | Guangdong, China |
| Brand Name: | Brespalin / OEM |
| Model Number: | APB25-SH1 |
| Tags: | mixed flow inline fan n20 dc geared motor motor for hair clipper dc 24v ac gear motors single phase 220v adjustable dc motor controller aluminum heat sink lens cooling fan |
Product Description
Product Description
Multiple Options, Meet Multiple Needs.
-- Wall / Window Mounted Louver Exhaust / Ventilation Fan for kitchen, bathroom, office
♦ Simple, no duct needed
♦ High-efficiency axial impeller
♦ Large air volume, low noise
♦ Stable long service life
PerformanceTable -- Wall / Window Mounted Louver Exhaust / Ventilation Fan for kitchen, bathroom, office
| Type | Model | Vol./Freq. | Power | Air Volume | Noise | Applicable area | Hole size | |
| (V/Hz) | (W) | (m3/h) | (dB) | (m²) | (mm) | |||
| Single-direction | APB15-S1 | Exhaust | 220/50 | 24 | 300 | 39 | 12~24 | 200*200 |
| APB20-S1 | Exhaust | 28 | 550 | 41 | 22~44 | 250*250 | ||
| APB25-S1 | Exhaust | 36 | 900 | 42 | 36~72 | 300*300 | ||
| APB30-S1 | Exhaust | 48 | 1200 | 46 | 48~96 | 350*350 | ||
| Dual-speed | APB20-S2 | Exhaust | 28/23 | 550/400 | 41/38 | 22~44 | 250*250 | |
| APB25-S2 | Exhaust | 36/31 | 900/650 | 42/39 | 36/31 | 350*350 | ||
| APB30-S2 | Exhaust | 48/42 | 1200/900 | 46/41 | 48~96 | 350*350 | ||
| Dual-dicretion | ASB20-S1 | Exhaust | 28 | 550 | 41 | 22~44 | 250*250 | |
| Air Suction | 25 | 450 | 45 | |||||
| ASB25-S1 | Exhaust | 36 | 900 | 42 | 36~72 | 300*300 | ||
| Air Suction | 32 | 700 | 46 | |||||
| ASB30-S1 | Exhaust | 48 | 1200 | 46 | 48~96 | 350*350 | ||
| Air Suction | 41 | 950 | 49 | |||||
Single-direction (with Net) | APB15-SH1 | Exhaust | 24 | 300 | 39 | 12~24 | 200*200 | |
| APB20-SH1 | Exhaust | 28 | 550 | 41 | 22~44 | 250*250 | ||
| APB25-SH1 | Exhaust | 36 | 900 | 42 | 36~72 | 300*300 | ||
| APB30-SH1 | Exhaust | 48 | 1200 | 46 | 48~96 | 350*350 | ||
Dual-speed (with Net) | APB20-SH2 | Exhaust | 28/23 | 550/400 | 41/38 | 22~44 | 250*250 | |
| APB25-SH2 | Exhaust | 36/31 | 600/650 | 42/39 | 36~72 | 300*300 | ||
| APB30-SH2 | Exhaust | 48/42 | 1200/900 | 46/41 | 48~96 | 350*350 | ||
Dual-dicretion (with Net) | ASB20-SH1 | Exhaust | 28 | 550 | 41 | 22~44 | 250*250 | |
| Air Suction | 25 | 450 | 45 | |||||
| ASB25-SH1 | Exhaust | 36 | 900 | 42 | 36~72 | 300*300 | ||
| Air Suction | 32 | 700 | 46 | |||||
| ASB30-SH1 | Exhaust | 48 | 1200 | 46 | 48~96 | 350*350 | ||
| Air Suction | 41 | 950 | 49 | |||||
Simple Schematic Diagram of Fresh Air System
Reassuring Service
We control every step of your order to make sure the goods arrive your side with good situation on time without any worry.
Strict testing for new products, OEM/ODM products, or customized products.
Our own molding factory (90T-1600T) provide us best cost, delivery time, quality for our Air Purifier, Anion generator, UV sterilizer, Fresh Air System, Exhaust Fan, Bathroom Fan, Heat Recovery Ventilator, Inline Duct Fan and so on.
Our own motor production line (two different department separated for different usage of motor.) provide us best cost, delivery time, quality for our own products.
Strictly required 5S workshop, regular staff training, in-process and final inspection, make sure every tiny mistake is stopped before delivery.
Specialized staff gives you an eye on your products. From our detailed loading report, you will know how are the products loaded. What you see will be what you received.
