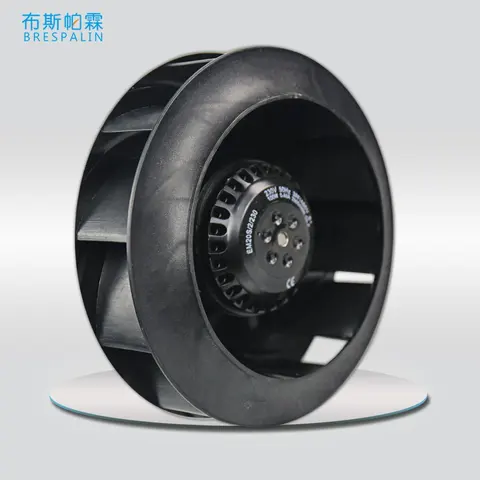

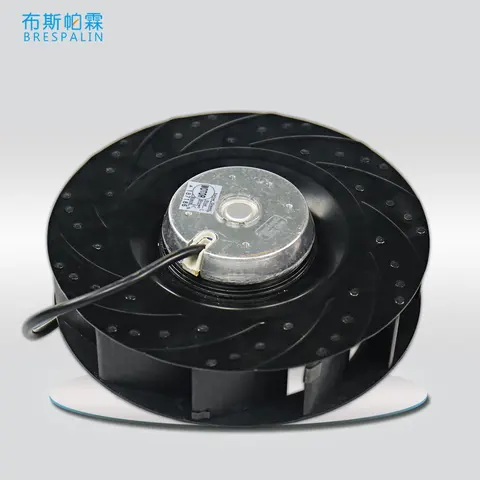

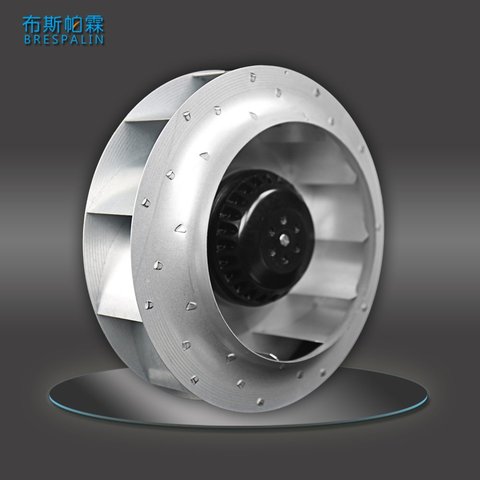

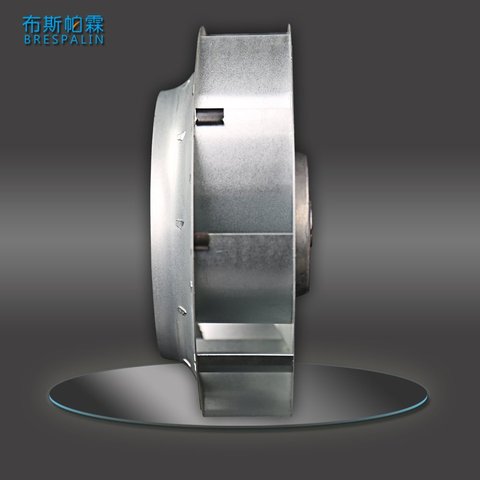

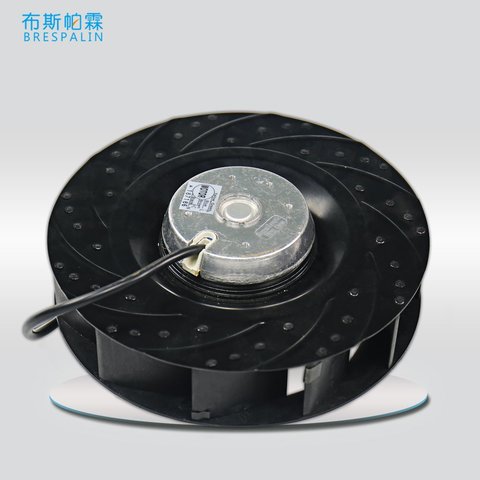

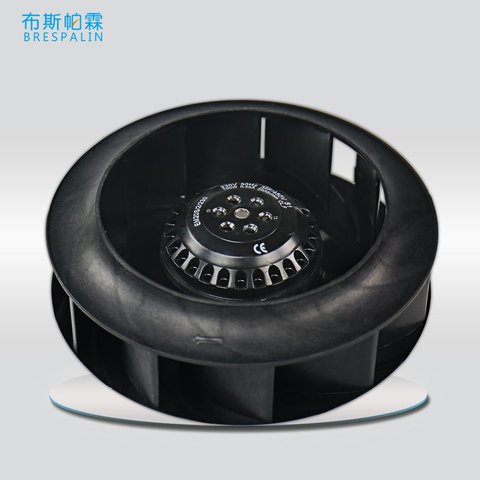

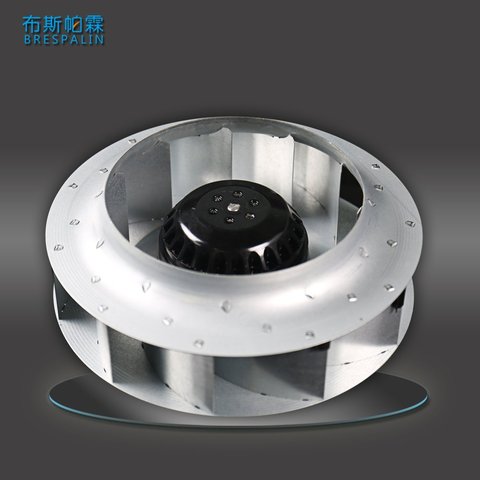

Backward Curved External Rotor Motor Blower for Air Purifier & Inline Duct Fan & Exhaust Fan
| Name: | Backward Curved External Rotor Motor Blower for Air Purifier & Inline Duct Fan & Exhaust Fan |
|---|---|
| FOB Price: | US $17.50 / Piece |
| Min. order: | 300 Piece |
| Type: | Centrifugal Fan |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Home Appliances Manufacturing |
| Blade Material: | Plastic / Cast Iron |
Product Description
Customized Motor with Impeller, we give you a solution for all household electric appliances.
♦ Long life
♦ Energy Saving
♦ Customized
♦ Ball Bearing
♦ Large Air Volume
♦ High Efficience
♦ Low Noise
♦ Low cost
Applications:
♦ Air Purifier
♦ Air Conditioner
♦ Exhaust Fan
♦ HVAC System Ventilators
♦ Heat Recovery Ventilators
♦ Bath Heater
♦ Blowers
♦ Dehumidifier
♦ Cooling Fan
Customization:
♦ Impeller Type: Axial type, Backward curved, Centrifugal multi-blade
♦ Impeller Material: metal, Plastic
♦ Impeller Size: As required
Outline Dimensional Drawing
Remarks: Size of A, B in the drawing can be customized.
Specifications
| Product Name | Backward Curved Impeller and External Rotor Motor for AC Fan | ||||
| Voltage | 220-240V | Frequency | 50/60 Hz | Bearing Type | Ball Bearing |
| Phase | Single Phase | Insulation Grade | B | Level of Protection | IP00-IP44 |
| Duty Type | S1 | Power Range | 65/69.82 W | Current | 0.321 A |
| Rotation | 2577 RPM | Applicable Air Volume | 100-200 m³/h | Blower Direction | Settled |
Reassuring Service
We control every step of your order to make sure the goods arrive your side with good situation on time without any worry.
Strict testing for new products, OEM/ODM products, or customized products.
Our own molding factory (90T-1600T) provide us best cost, delivery time, quality for our Air Purifier, Anion generator, UV sterilizer, Fresh Air System, Exhaust Fan, Bathroom Fan, Heat Recovery Ventilator, Inline Duct Fan and so on.
Our own motor production line (two different department separated for different usage of motor.) provide us best cost, delivery time, quality for our own products.
Strictly required 5S workshop, regular staff training, in-process and final inspection, make sure every tiny mistake is stopped before delivery.
Specialized staff gives you an eye on your products. From our detailed loading report, you will know how are the products loaded. What you see will be what you received.
