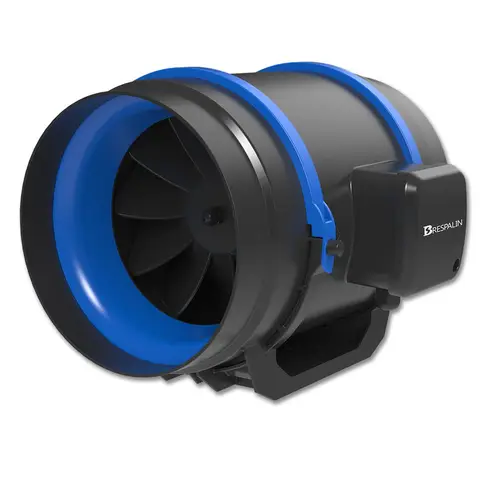

10 Inch Mixed Flow Silent Inline Fan for Hydroponic Grow Room Ventilation
| Name: | 10 Inch Mixed Flow Silent Inline Fan for Hydroponic Grow Room Ventilation |
|---|---|
| SKU: | AM250 |
| Type: | Axial Flow Fan |
| Applicable Industries: | Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factor |
| Mounting: | Duct Fan |
| Tags: | inline duct fan mixed flow fan duct fan hydroponics fan grow room fan high speed cooling fan inverter cooling fan for welding machine bathroom fan exhaust ventilation dc motor ceiling fan hyundai tucson 2014 ac motor refrigerator cooling fan |
Product Description
A solution for most kind of ducting ventilation system.
♦ Simple installation, simple maintenance.
♦ Ball bearing motor.
♦ Large air flow.
♦ High Pressure, high efficiency
♦ Duct air pressurization.
♦ 2 Speeds
♦ Stable long service life
♦ Unique Design.
♦ Low cost.
Product Structure
Blower can be taken out just by unscrew two screws with any operation on the duct and spigot connector.
Performance Table
| Model | Power (W) | Air Volume (m³/h) | Static Pressure (Pa) | Noise (dB) | Duct Size (mm) | Applicable Area |
| AM100 | 28/25 | 200/150 | 180/130 | 30/25 | 100 | 8-16 |
| AM125 | 35/30 | 350/300 | 240/120 | 32/30 | 125 | 10-17 |
| AM150 | 50/40 | 500/400 | 300/250 | 35/30 | 150/160 | 18-36 |
| AM200 | 70/60 | 850/700 | 350/280 | 50/45 | 200 | 34-76 |
| AM250 | 170/130 | 1500/1100 | 550/400 | 60/54 | 250 | 42-84 |
| AM315 | 320/230 | 2300/1800 | 700/500 | 66/61 | 315 | 60-120 |
Overall and Installation Dimension
Multi-Application
Easy Installation & Maintenance
Blower can be taken out just by unscrew two screws with any operation on the duct and spigot connector.
Performance Curve
