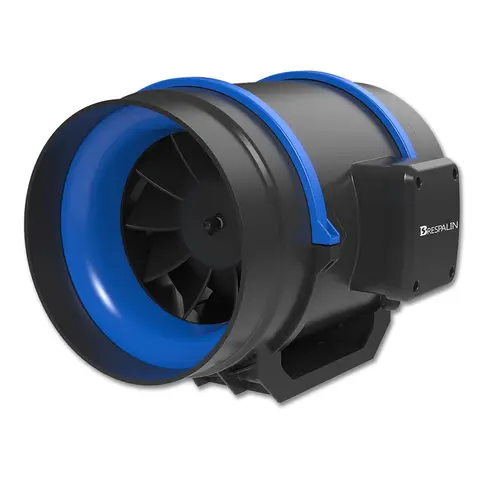

12 Inch In-line Mixed Flow Duct Fan
| Name: | 12 Inch In-line Mixed Flow Duct Fan |
|---|---|
| SKU: | AM315 |
| Type: | Axial Flow Fan |
| Applicable Industries: | Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factor |
| Mounting: | Duct Fan |
| Tags: | inline duct fan mixed flow fan duct fan hydroponics fan grow room fan treadmill dc motors 180v 7265579 cooling fan motor bobcat s450 egg incubator geared motor dc dc 24v motor 1000w 3 inch inline duct exhaust fan motor 5512 220v dc |
Product Description
Product Description
A solution for most kind of ducting ventilation system.
♦ Simple installation, simple maintenance.
♦ Ball bearing motor.
♦ Large air flow.
♦ High Pressure, high efficiency
♦ Duct air pressurization.
♦ 2 Speeds
♦ Stable long service life
♦ Unique Design.
♦ Low cost.
Product Structure
Blower can be taken out just by unscrew two screws with any operation on the duct and spigot connector.
Performance Table
| Model | Power (W) | Air Volume (m³/h) | Static Pressure (Pa) | Noise (dB) | Duct Size (mm) | Net Weight | Applicable Area |
| D100 | 28/25 | 200/150 | 180/130 | 30/25 | 100/125 | 1.8 | 8-16 |
| D150 | 50/40 | 500/400 | 300/250 | 35/30 | 150/160 | 2.2 | 18-36 |
| D200 | 70/60 | 850/700 | 350/280 | 50/45 | 200 | 3.1 | 34-76 |
| D250 | 170/130 | 1500/1100 | 550/400 | 60/54 | 250 | 7.0 | 42-84 |
| D315 | 320/230 | 2300/1800 | 700/500 | 66/61 | 315 | 9.7 | 60-120 |
Overall and Installation Dimension
Multi-Application
Easy Installation & Maintenance
Blower can be taken out just by unscrew two screws with any operation on the duct and spigot connector.
Performance Curve
